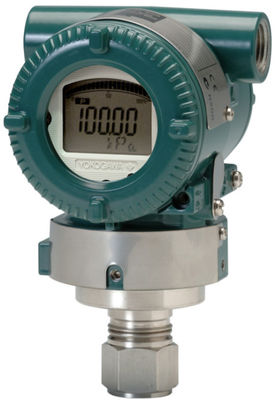

EJA530E-DAS4N-012DL/D4 EJA530E In-Line Mount Gauge Pressure Transmitter

EJA530E-DAS4N-012DL/D4 EJA530E In-Line Mount Gauge Pressure Transmitter

Description:

Manufacturer : Yokogawa

Product No. : EJA530E-DAS4N-012DL/D4

Product type : EJA530E Gauge Pressure Transmitter

Measurement span (capsule) : A = 10 to 200 kPa (1.45 to 29 psi)

Wetted parts material : S = 316L SST Process connector, Hastelloy C-276 Diaphragm, 316L SST Others.

Amplifier housing : 1 = Cast aluminum alloy

Mounting bracket : N = None

ATEX : KS21 = ATEX Intrinsically safe Approval *1*3 Applicable Standard: EN 60079-0:2012/A11:2013, EN 60079-11:2012, EN 60079-26:2007 Certificate: DEKRA 11ATEX0228 X II 1G, 2D Ex ia IIC T4 Ga, Ex ia IIIC T85°C T100°C T120°C Db Degree of protection: IP66/IP67 Amb. Temp. (Tamb) for EPL Ga: –50 to 60°C (–58 to 140°F) Maximum Process Temp. (Tp) for EPL Ga:120°C Electrical data: Ui=30 V, Ii=200 mA, Pi=0.9 W, Ci=27.6 nF, Li=0 µH Amb. Temp. for EPL Db: –30 to 60°C *2 Max. surface Temp. for EPL Db: T85°C (Tp: 80°C), T100°C (Tp: 100°C), T120°C (Tp: 120°C)

Calibration units : D4 = M calibration (kgf/cm2 unit)

Weight : 1.2 Kg

Shipping Weight : 2.5 Kg

Additional Informaiton:

The EJA530E with DPharp digital sensor offers the performance needed to run your operations at peak performance. This ensures on-spec product, reduced waste, and improved yield, helping you increase profitability.

• Accuracy: ±0.055% of Span
• Response Time: 90 msec
• Stability: ±0.1% of URL per 10 years
